Install GPay kit 4210-001-2 on Encore dual-coin dryers

Connect the Greenwald Pay device to the Encore pulse-dryer control board and dual-coin device.

• Kit: 4210-001-2 (Dual Coin)
• Installation sheet: INS. 2477-1 Rev B

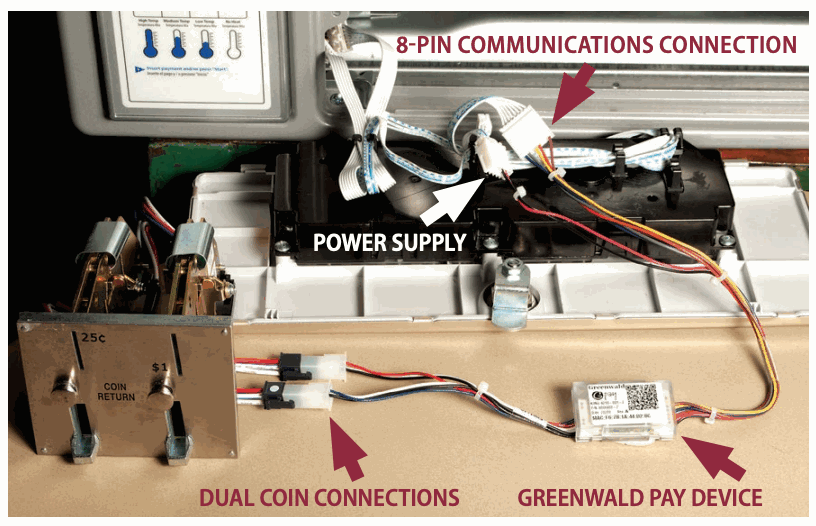

Installation layout

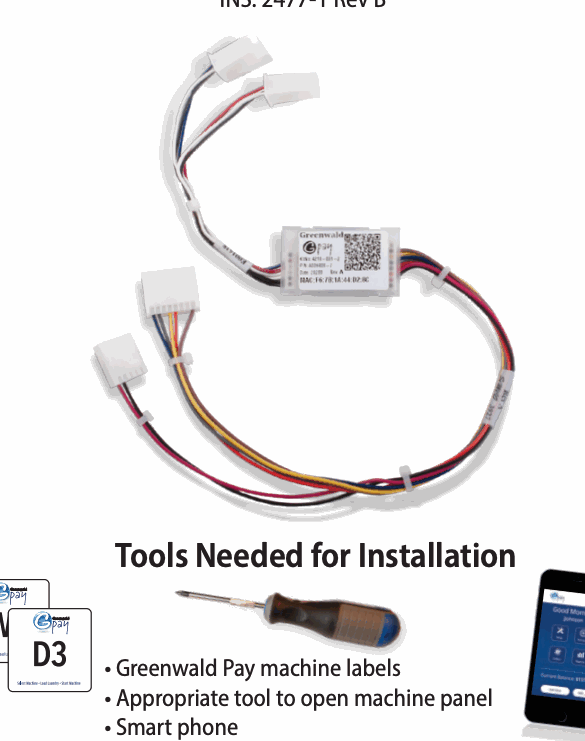

What you need

• Greenwald Pay machine labels
• Appropriate tool or operator key to open the machine panel
• Smartphone with the Greenwald Pay app

Before you begin

• Create the room and machine profiles in Greenwald Management System (GMS).
• Confirm the exact machine model, controller, and kit number.
• Choose the correct GMS profile settings for a pulse dryer.
• Disconnect machine power before opening the console or changing connections.

Install the hardware

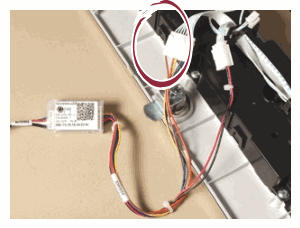

1. Open the console panel. Connect the Greenwald Pay 8-pin communication connector to the machine control.

2. Connect the Greenwald Pay power plug to the machine power supply.

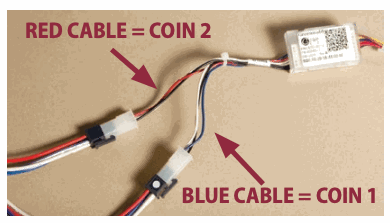

3. Connect the Greenwald Pay dual-coin leads to the installed coin device: blue cable to Coin 1 and red cable to Coin 2.

Configure the device

1. Leave the console open and restore machine power.
2. Wait for initialization. A slow-blinking white LED means the device is not configured and is ready to pair.
3. In the Greenwald Pay app, sign in with administrator credentials and select Setup.
4. Select the correct account and location.
5. Select the device, then select the machine assignment that matches the physical machine label.
6. Confirm that the MAC address shown in the app matches the MAC address on the device.
7. Label the washer or dryer with its machine number.
8. Repeat for every machine.
9. Close all console panels when setup is complete.

For additional help, call Greenwald Customer Service at 800-221-0982.

Device LED codes

Original installation sheet

Download INS. 2477-1 Rev B. The same PDF remains attached to this page.
