Install GPay kit 4016-001-2 on LG dual-coin machines

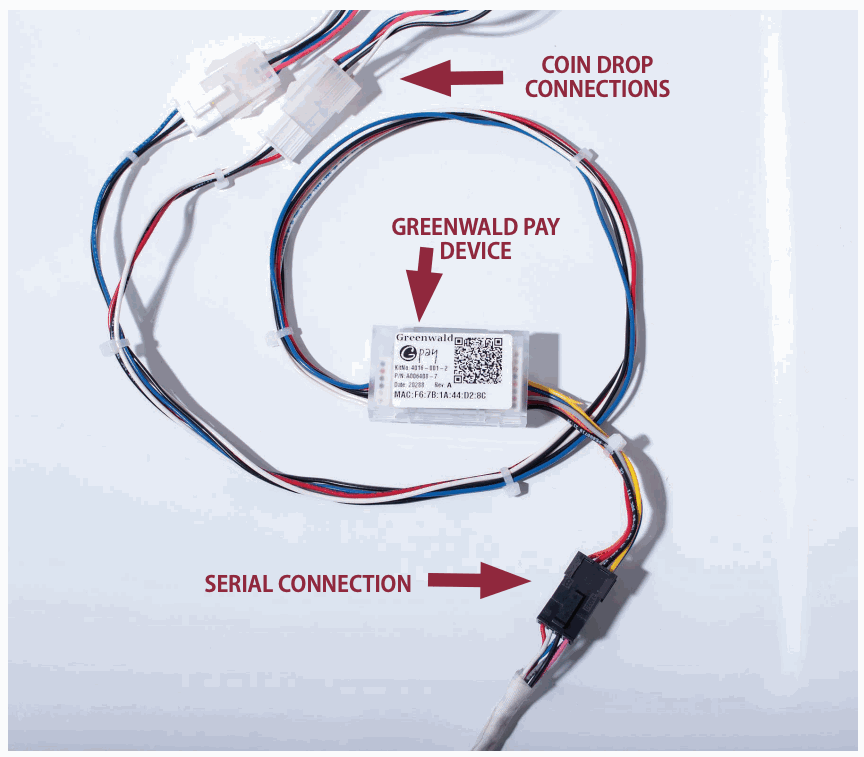

Install the Greenwald Pay device between the LG control panel and both coin drops.

• Kit: 4016-001-2
• Installation sheet: INS. 2476-2 Rev A

Installation layout

What you need

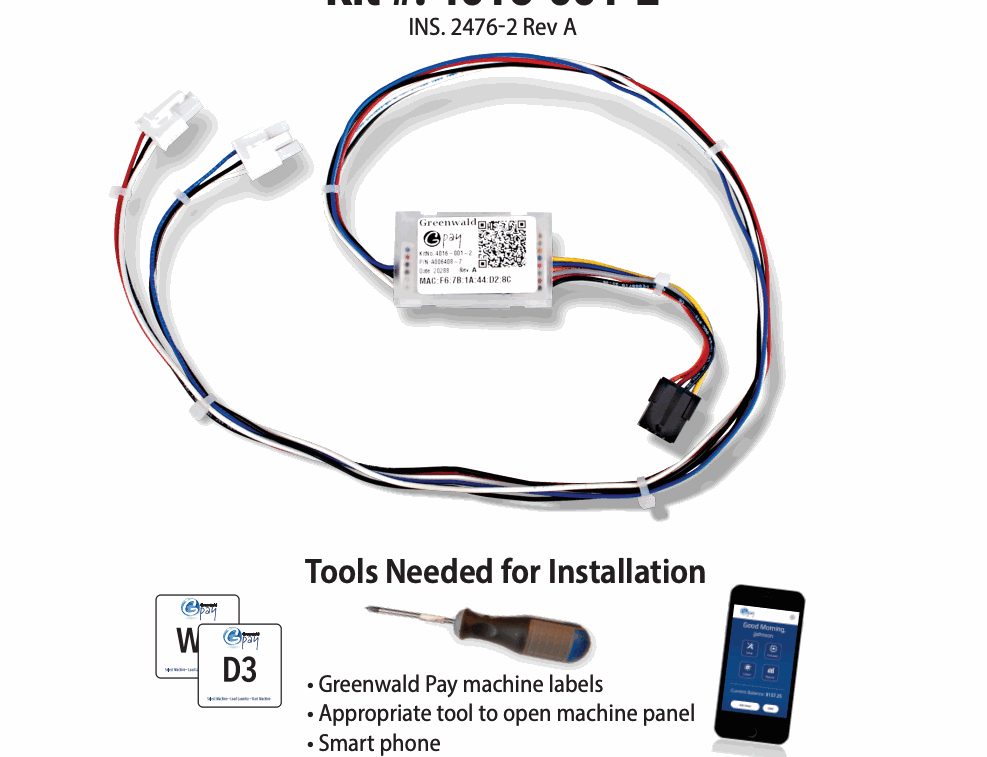

• Greenwald Pay machine labels
• Appropriate tool or operator key to open the machine panel
• Smartphone with the Greenwald Pay app

Before you begin

• Create the room and machine profiles in Greenwald Management System (GMS).

• Confirm the exact machine model, controller, and kit number.

• Disconnect machine power before opening the console or changing connections.

Install the hardware

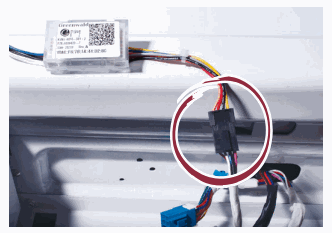

1. Open the console panel. Connect the Greenwald Pay serial harness to the machine serial plug.

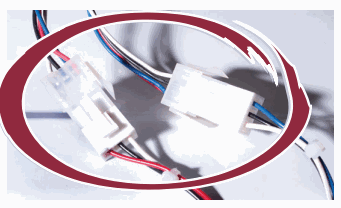

2. Connect the two coin harnesses from the Greenwald Pay device to the machine coin drops.

Configure the device

1. Leave the console open and restore machine power.
2. Wait for initialization. A slow-blinking white LED means the device is not configured and is ready to pair.
3. In the Greenwald Pay app, sign in with administrator credentials and select Setup.
4. Select the correct account and location.
5. Select the device, then select the machine assignment that matches the physical machine label.
6. Confirm that the MAC address shown in the app matches the MAC address on the device.
7. Label the washer or dryer with its machine number.
8. Repeat for every machine.
9. Close all console panels when setup is complete.

For additional help, call Greenwald Customer Service at 800-221-0982.

Device LED codes

Original installation sheet

Download INS. 2476-2 Rev A. The same PDF remains attached to this page.
