Install GPay kit 4004-101-3 on ACA machines without a power supply

Connect the Greenwald Pay device directly to the ACA machine control board.

  • Kit: 4004-101-3 (No Power Supply)
  • Installation sheet: INS. 2473-4 Rev B

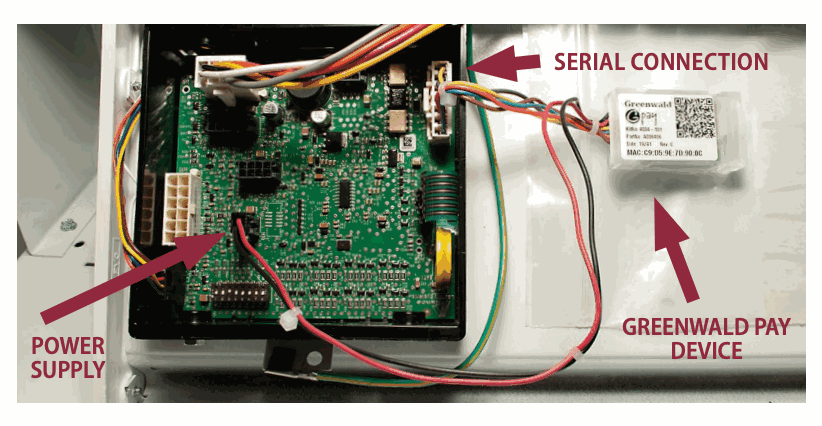

Installation layout

ACA Greenwald Pay installation without power supply connection layout

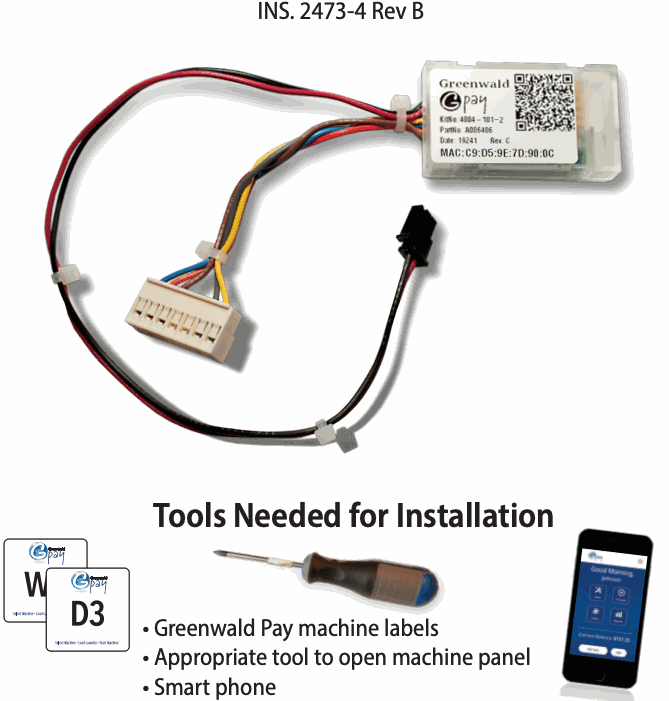

What you need

  • Greenwald Pay machine labels
  • Appropriate tool or operator key to open the machine panel
  • Smartphone with the Greenwald Pay app

ACA Greenwald Pay installation without power supply kit and required tools

Before you begin

  • Create the room and machine profiles in Greenwald Management System (GMS).
  • Confirm the exact machine model, controller, and kit number.
  • Use INS. 2486 to identify a Quantum Gold Pro machine. Serial Payment must be enabled on those controls before device installation.
  • Disconnect machine power before opening the console or changing connections.

Install the hardware

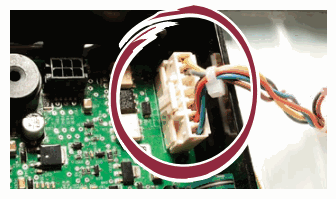

  1. Open the console panel. Connect the Greenwald Pay serial-communication connector to H3 on the control board.

Greenwald Pay serial connector installed at H3

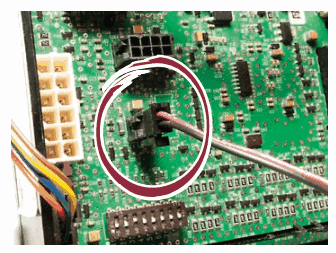

  1. Connect the Greenwald Pay power plug to H10 on the control board.

Greenwald Pay power connection at H10

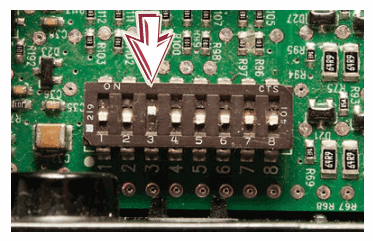

  1. For machines other than Quantum Gold Pro, set DIP switch 3 to On. Leave every other switch in its original position and change switches only while power is off.

ACA control-board DIP switch 3 in the On position

Configure the device

  1. Leave the console open and restore machine power.
  2. Wait for initialization. A slow-blinking white LED means the device is not configured and is ready to pair.
  3. In the Greenwald Pay app, sign in with administrator credentials and select Setup.
  4. Select the correct account and location.
  5. Select the device, then select the machine assignment that matches the physical machine label.
  6. Confirm that the MAC address shown in the app matches the MAC address on the device.
  7. Label the washer or dryer with its machine number.
  8. Repeat for every machine.
  9. Close all console panels when setup is complete.

For additional help, call Greenwald Customer Service at 800-221-0982.

Device LED codes

Color Activity Meaning
Off Off Device not connected to power
White Slow blink Device not configured
Blue Steady Selected during configuration
Yellow Slow blink Loading machine configuration
Green Steady Configured and ready
Blue Slow blink Active with phone app
Green Fast blink Active; Start not pressed
Green Slow blink Busy; machine running
Red Slow blink Machine error
Red Fast blink Machine interface error
Blue/Green Slow toggle Firmware loading
Red Steady Firmware error

Machine error codes

  • EC18 or EC19 - No communication between reader and control board: Check the serial/purse jumper where applicable, inspect all wiring, and confirm setup while noting the Greenwald Pay LED color.
  • EC11 - Initialization error: Power the machine down, power it up, and try again.
  • EC1A - Payment-system initialization on a Front End Control-only system: Change the GMS machine configuration.
  • EC05 - Invalid data from reader: Confirm the machine type. Verify that at least one programming option is valid and within range.

Original installation sheet

Download INS. 2473-4 Rev B. The same PDF remains attached to this page.
